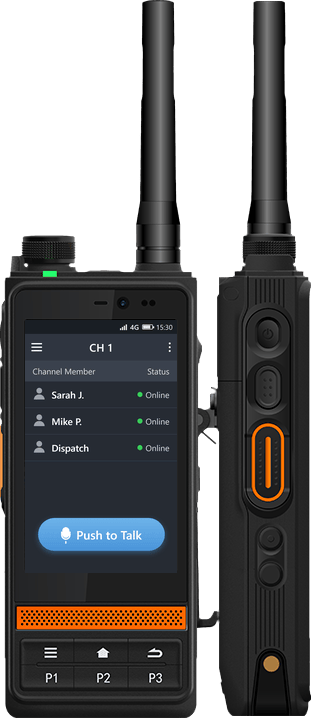

Peak PTT PE-500 Hybrid UHF DMR + PoC Radio
The PE-500 is a dual mode communication device that combines nationwide push-to-talk over cellular (PoC) with a 2 watt UHF DMR two-way radio in one rugged handheld. Dedicated PTT buttons for each mode let your team switch between nationwide talk groups and local radio channels with one press.
The PE-500 provides seamless switching between broadband and narrowband networks, and can provide point-to-point narrowband communications where there is no network coverage at all.
Rugged Radio
IP68 rated, waterproof, dustproof and tested to survive drops from five feet high. The 3.5 inch touchscreen supports glove and wet-finger operation.
DMR Specifications
| Frequency Range | UHF 400-470 MHz |
| Channel Capacity | 64 zones, 16 channels per zone |
| DMR Tier | Tier II, analog and digital modes |
| Transmitting Power | 2W |
| Channel Spacing | 12.5 KHz |
| TDMA | 2 time slots, repeater operation supported |
| Programming | CPS software, program your own FCC licensed frequencies |
Connectivity Specifications
| GSM | B2/B3/B5/B8 |
| WCDMA | B1/B2/B4/B5/B8 |
| FDD-LTE | B1-B8/B12/B13/B17-B20/B25/B26/B28A/B28B/B66 |
| TDD-LTE | B34/B38-B41 |
| WI-FI | 802.11 2.4 GHz and 5 GHz, hotspot capable |
| Bluetooth | BT 4.2 with BLE |
| NFC | Yes |
| GPS | GPS + BDS |
Hardware Specifications:
| CPU | Octa-Core 2.3 GHz |
| RAM | 4GB + ROM 64GB, microSD up to 256GB |
| Display | LCD 3.5" WVGA Touch Screen, glove and wet finger support |
| Camera | Rear Camera: 13MP with flashlight |
| Speaker | 40mm, 3.0W |
| Battery | 4,000 mAh (7,000 mAh optional) |
| SIM | Dual Nano-SIM |
| USB Port | USB Type-C |
PDF Spec Sheet: PE-500 Spec Sheet
Physical Specifications
| Dimensions | 5.4" L x 2.3" W x 1.1" D (Does Not Include Antenna) |
| Weight | 0.69 lbs |
| IP Rating | 68 |
| Operating Temperature | -4o F ~ 140o F |
Monthly Service Pricing
$24.95 per device per month, includes unlimited nationwide PTT service.
FCC Licensing Service
The PE-500 requires an FCC License to operate the DMR two-way radio. PeakPTT can procure the license on behalf of your company. A FCC license is valid for 10 years. Please contact us for further information.
