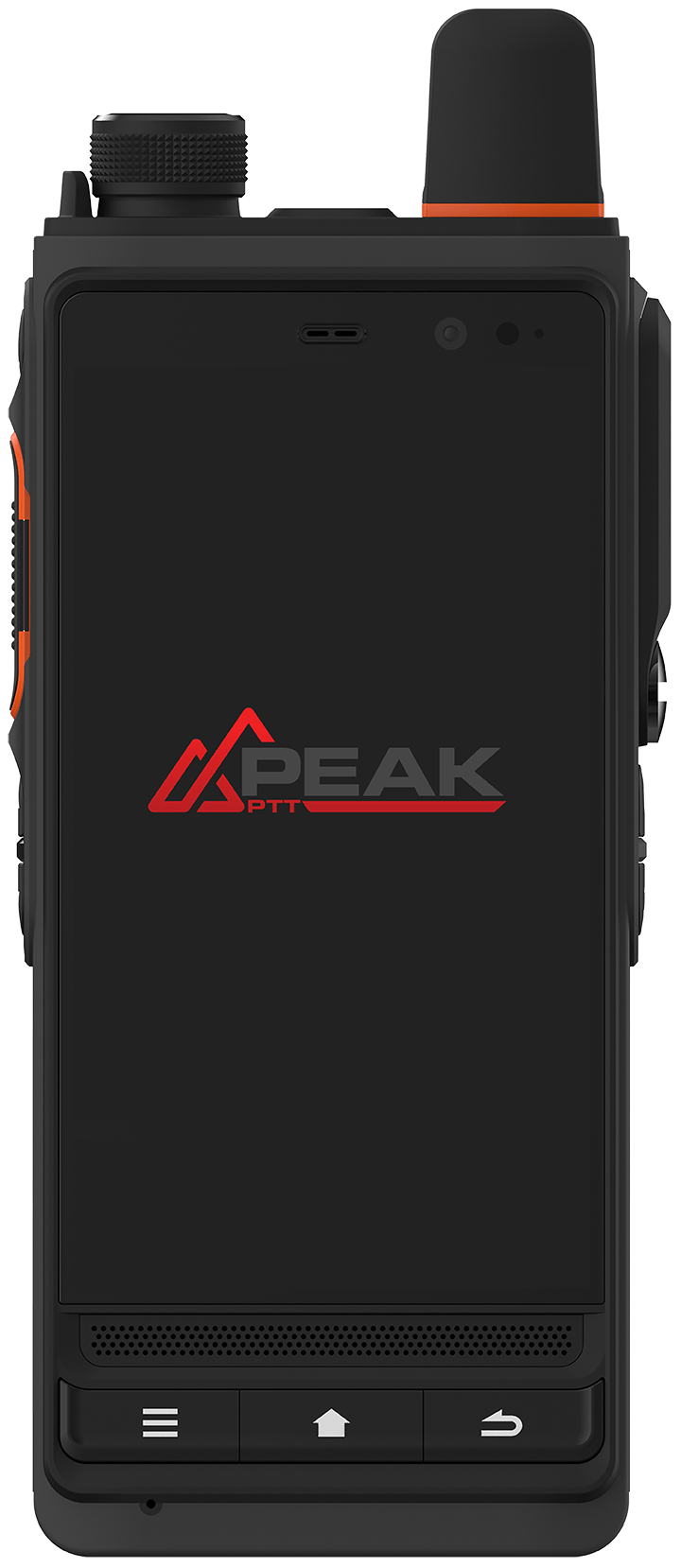

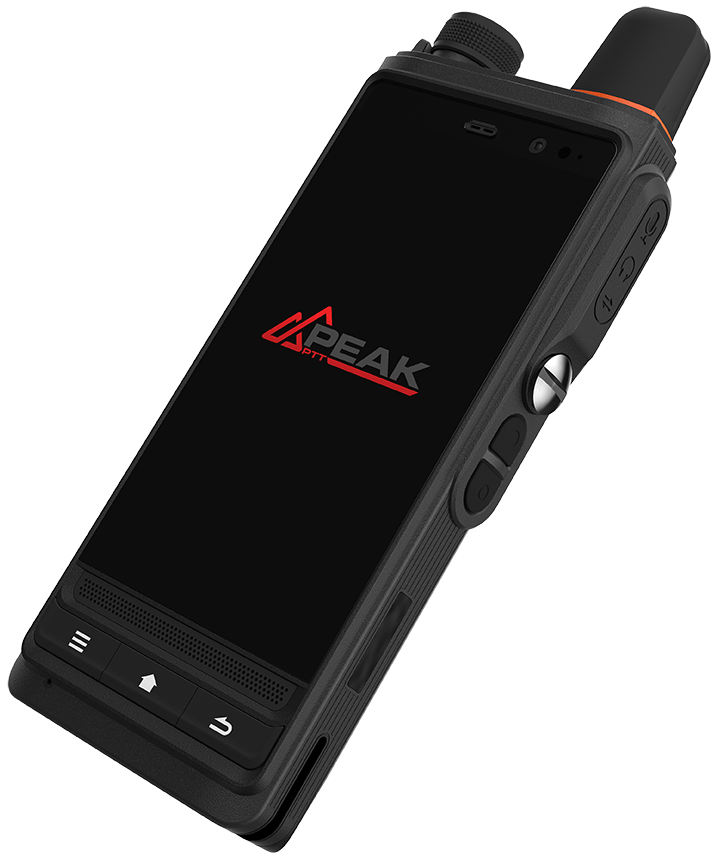

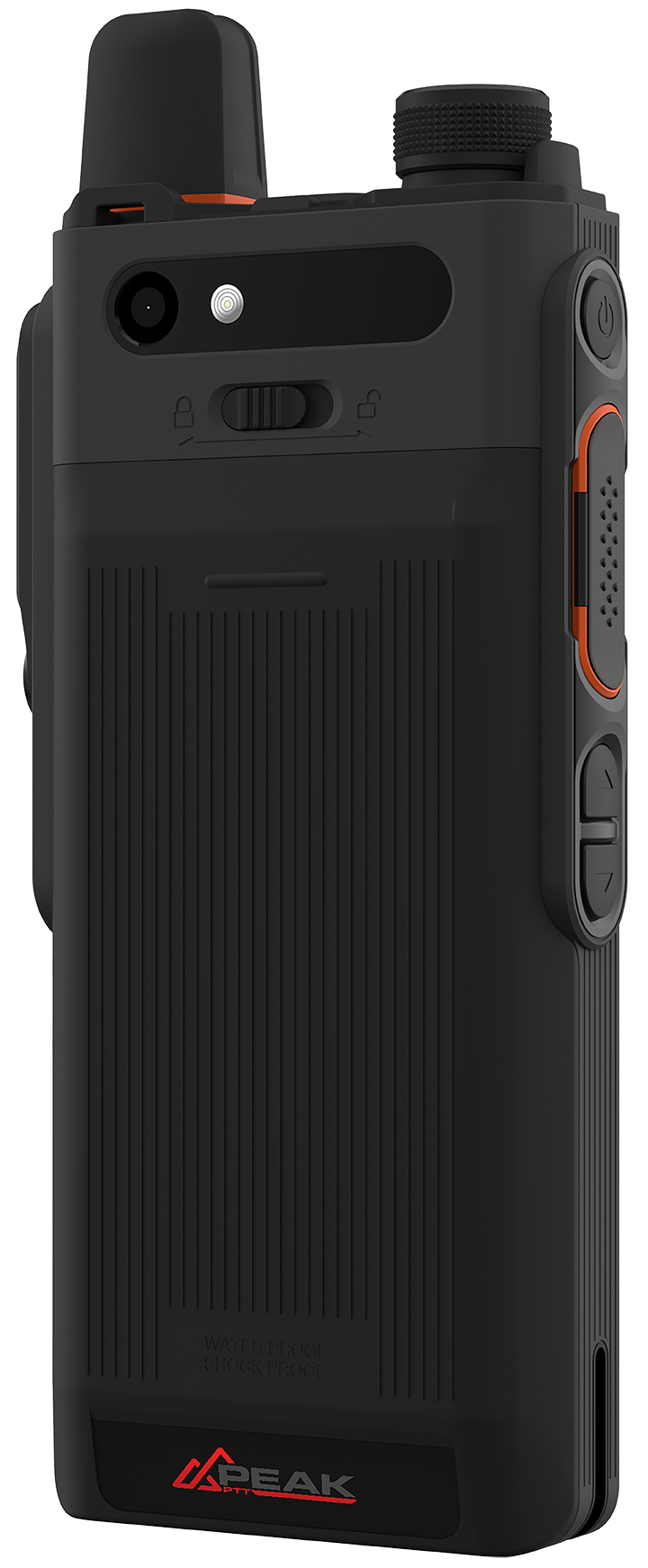

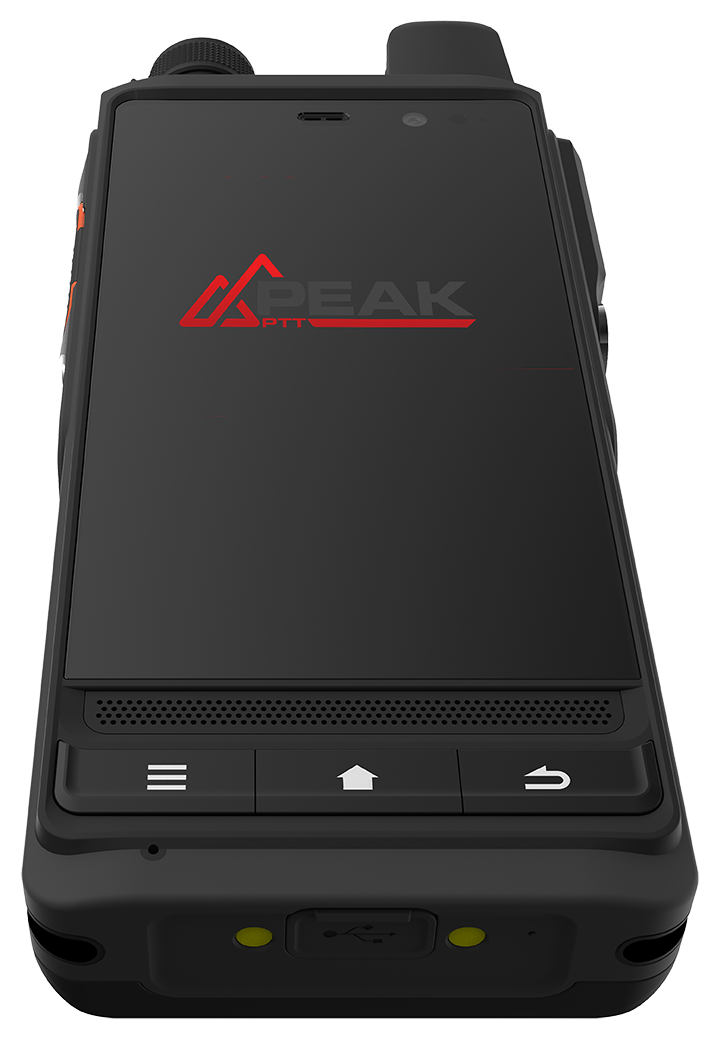

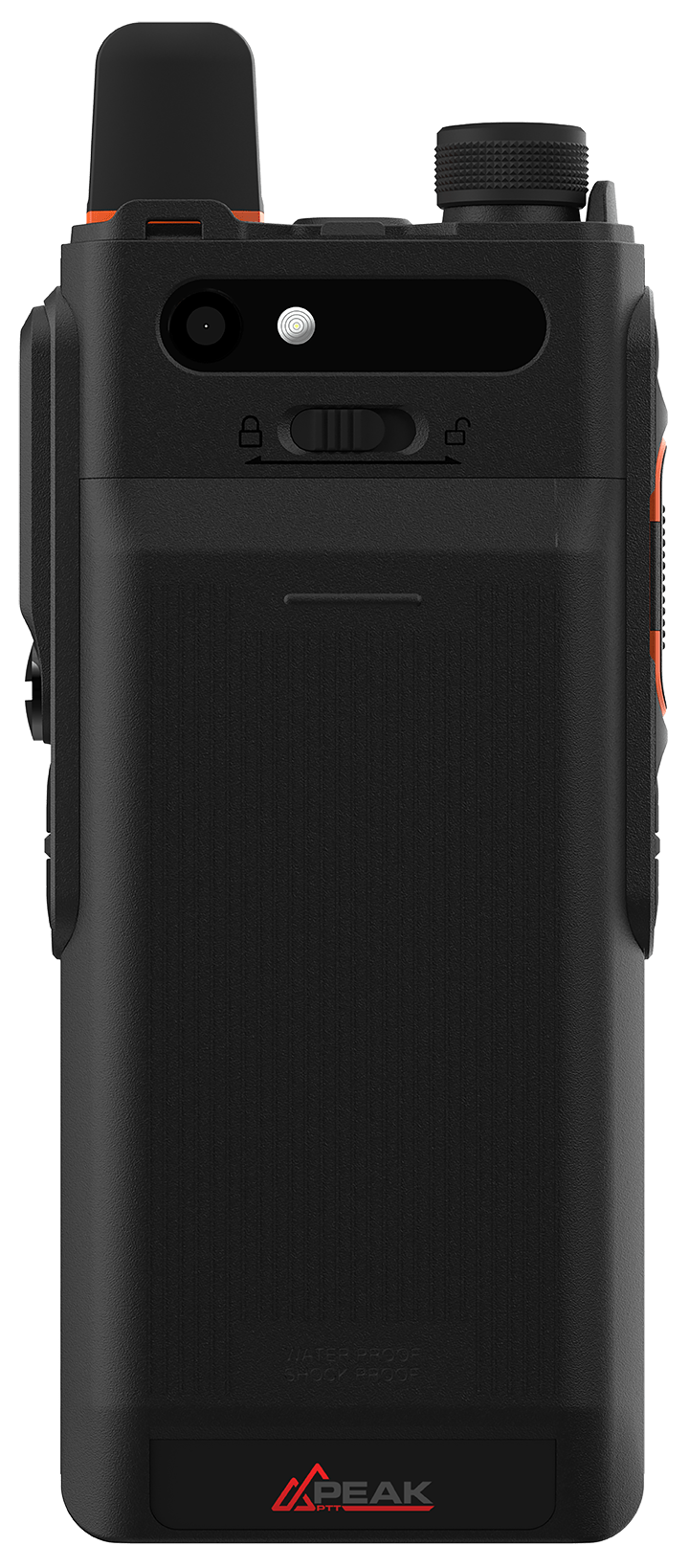

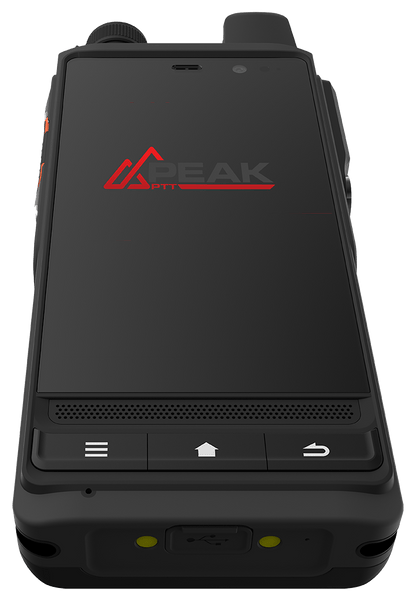

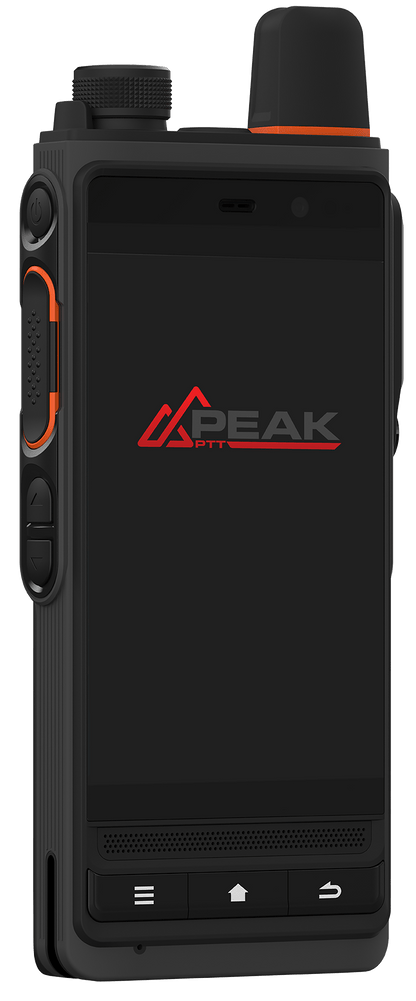

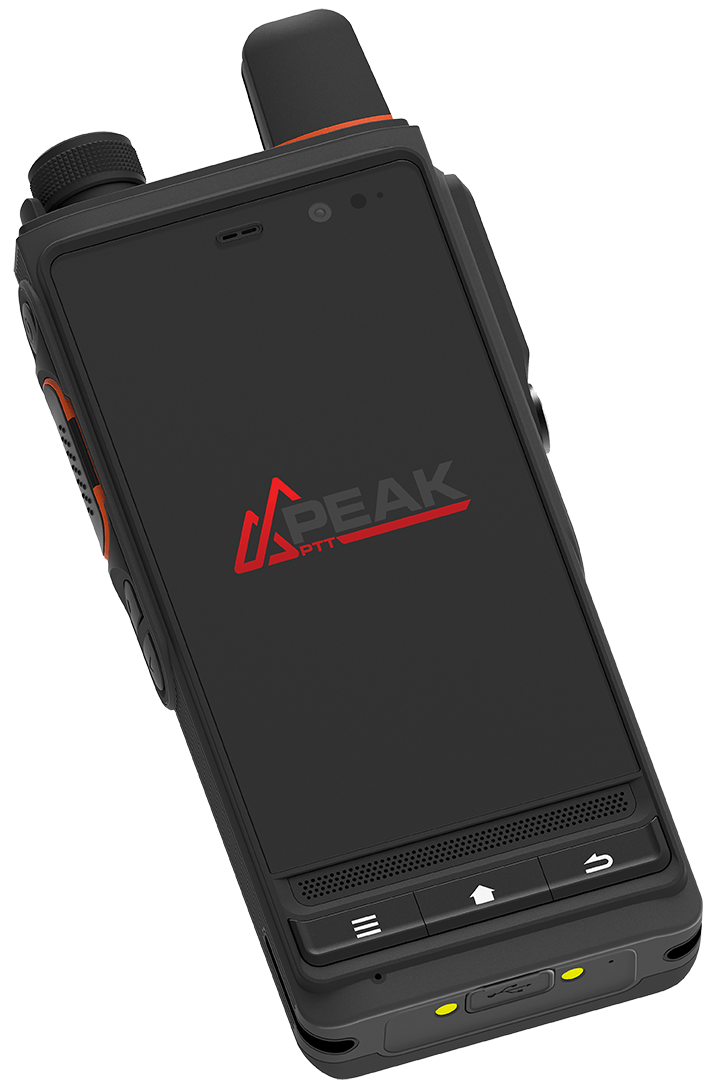

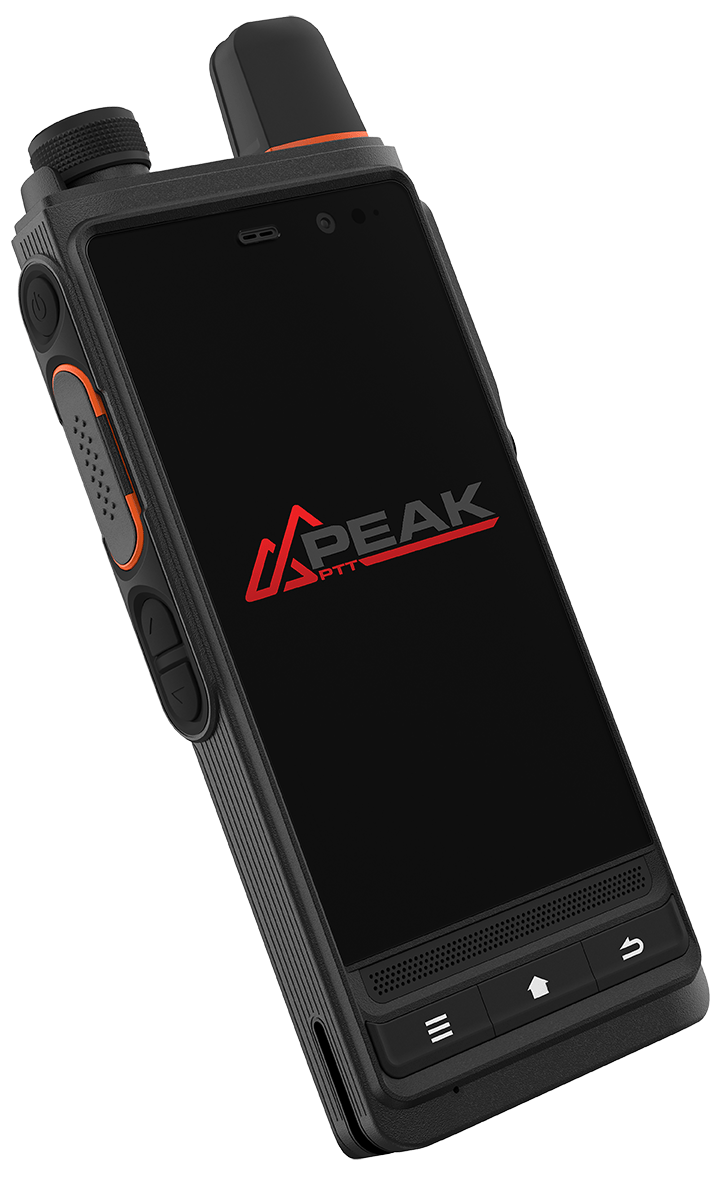

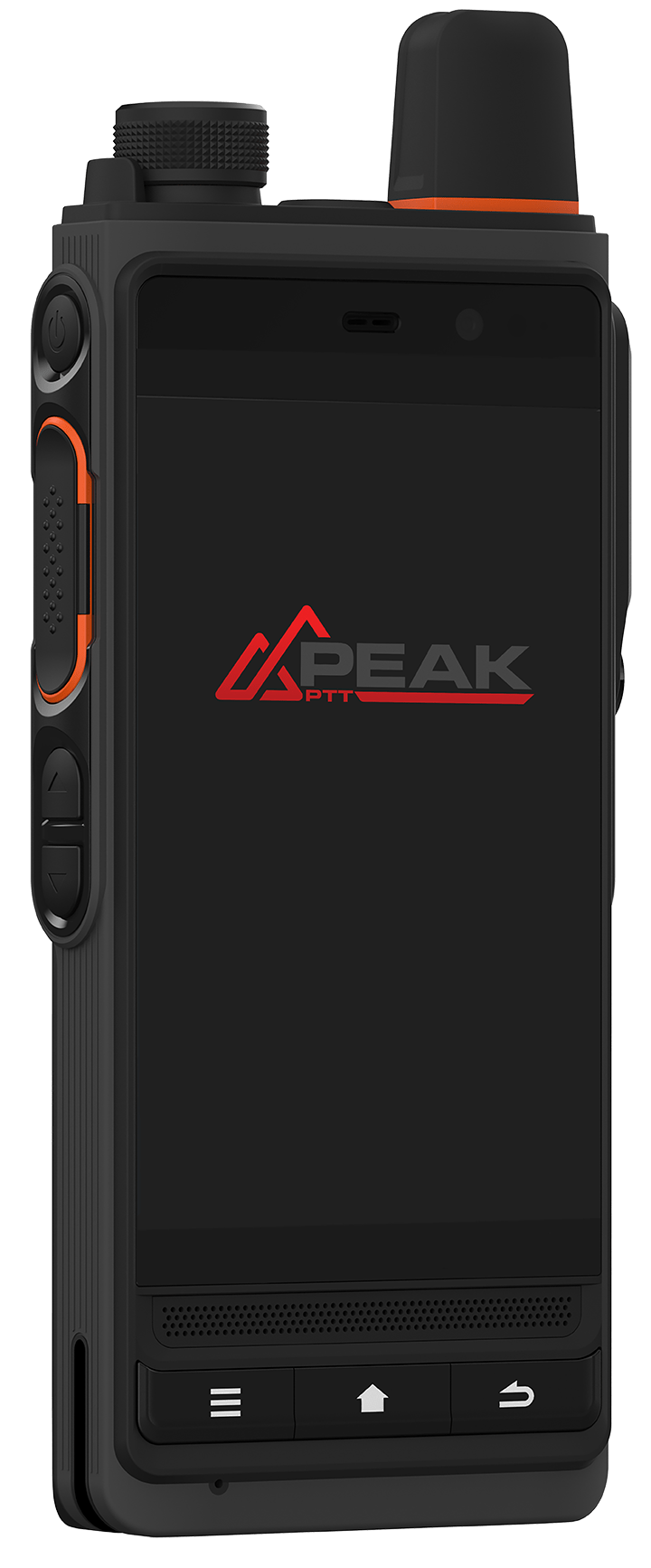

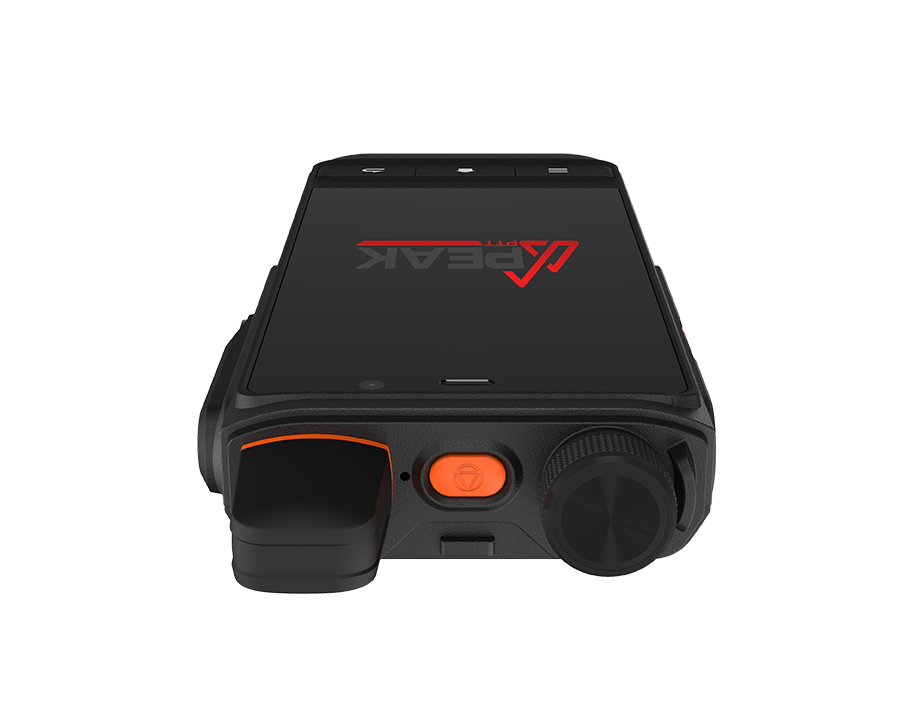

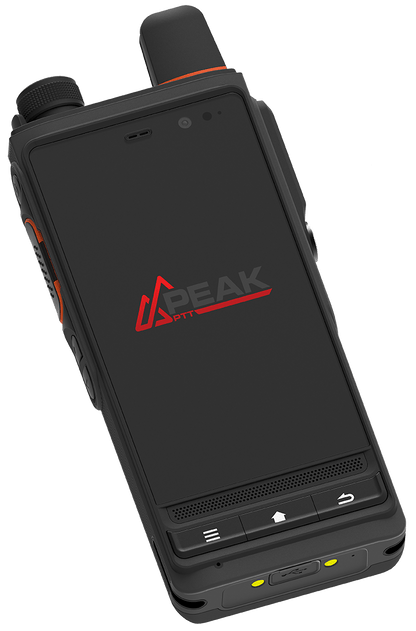

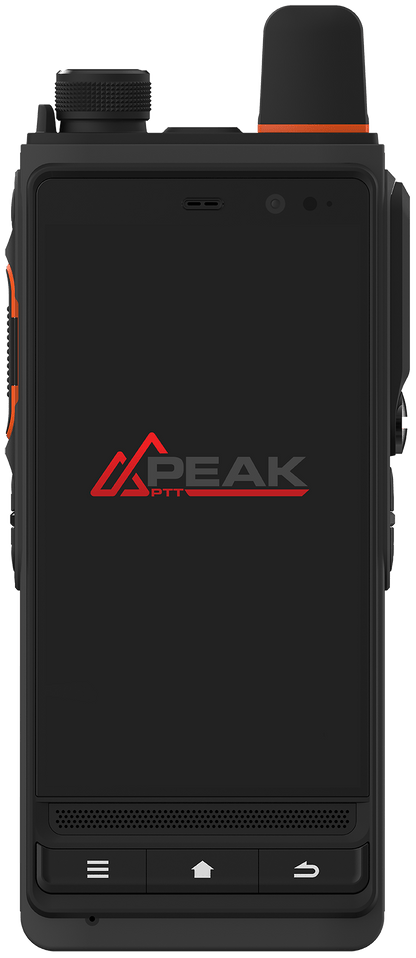

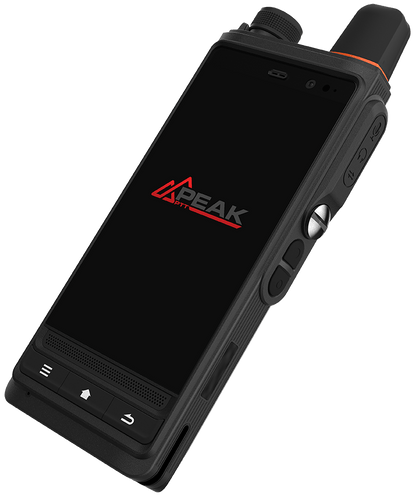

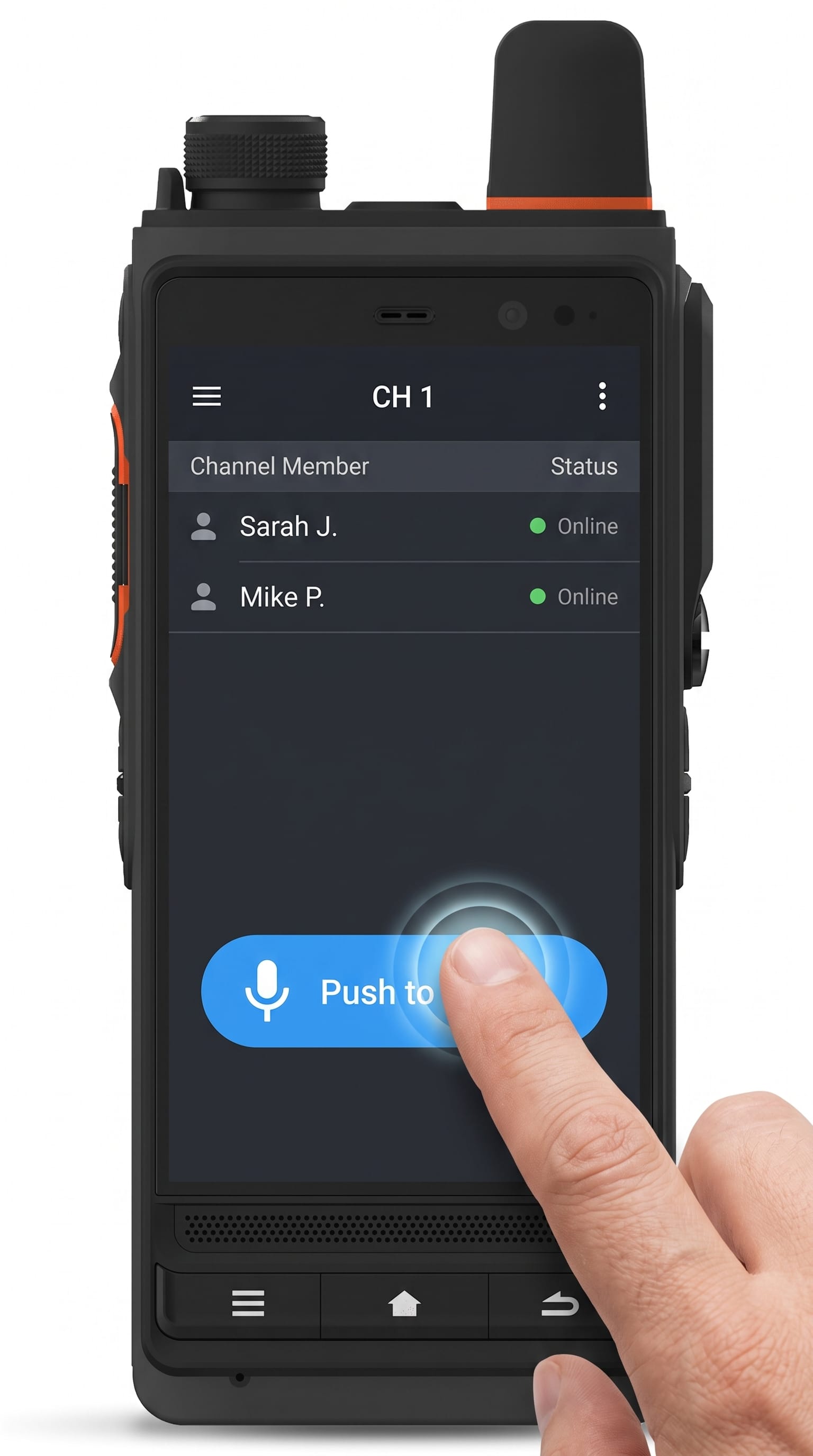

Peak PTT 624G LTE Radio
The PTT-624G is a ultra-rugged 4G LTE handset designed for the harshest of work conditions with the look and feel of a traditional 2-way radio. Powerful 2W speaker makes this one of the loudest radios we offer. The PTT-624G is equipped with dual noise cancelling mics, for clear transmissions. The large capacity 5000 mAh battery will power the PTT-624G for days.
Ultra-Rugged Radio
IP68 rated, waterproof, dustproof and tested to survive drops from over five feet high. The PTT-624G has been tested to survive over three feet underwater for up to thirty minutes.

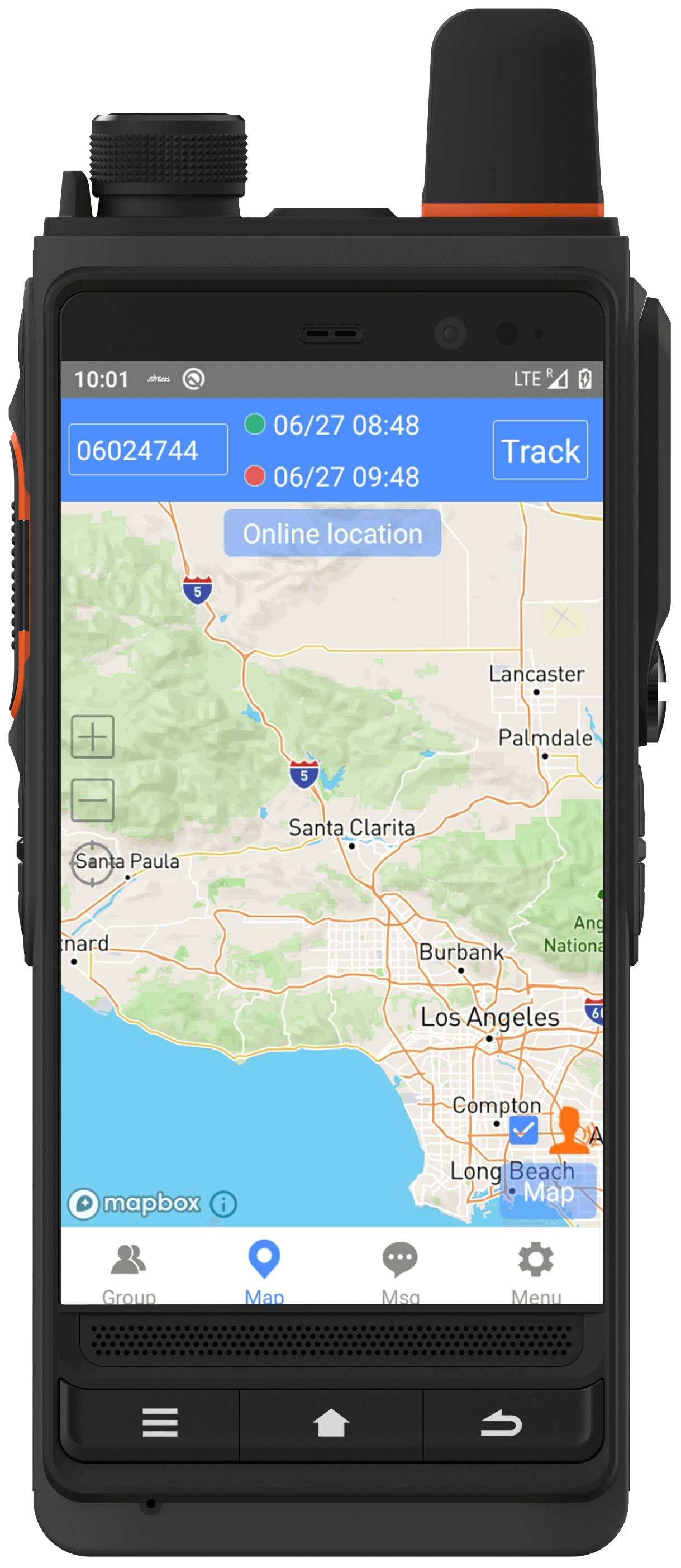

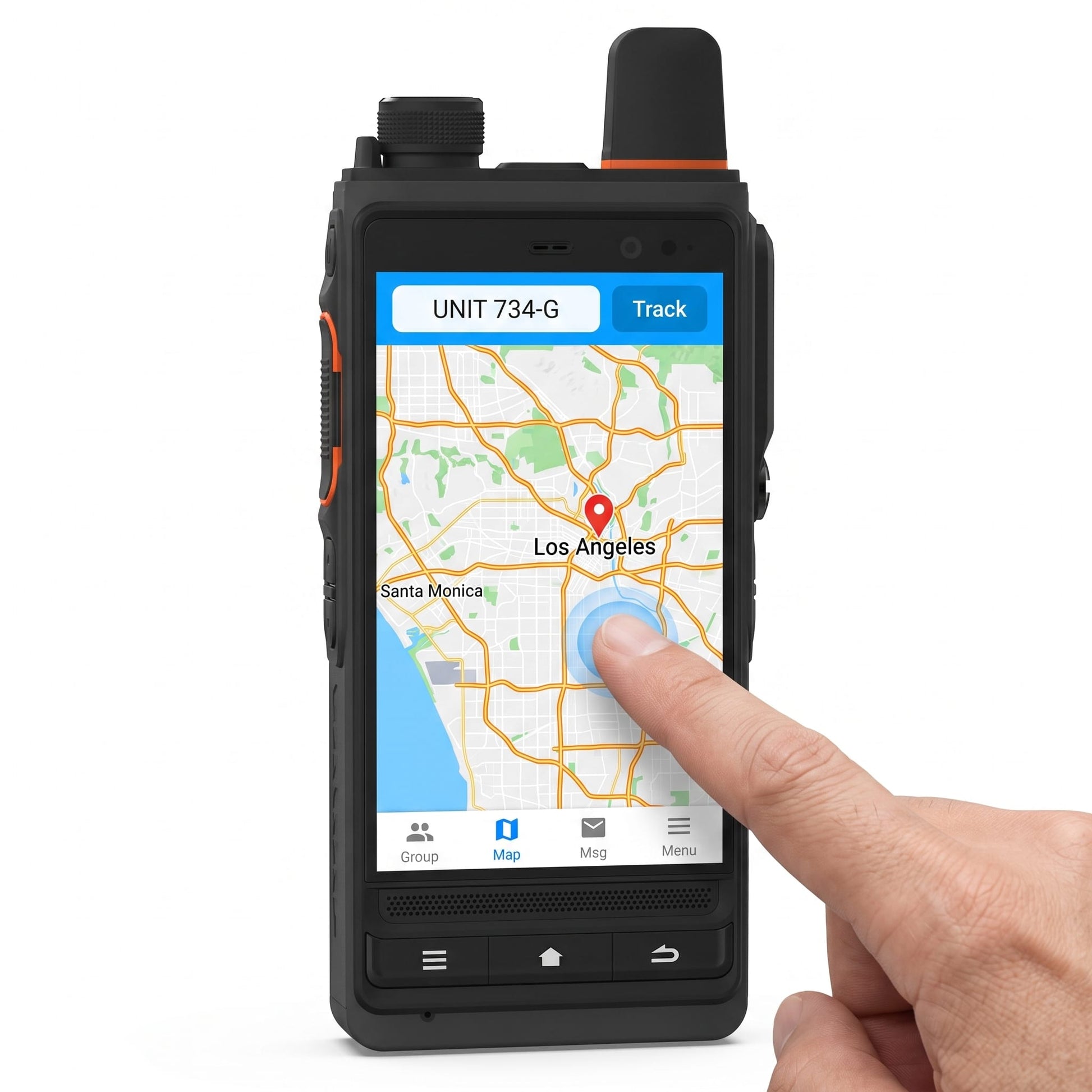

Map Display On Radio- Latched Calling Position
A great radio for supervisors, the radio displays location of all radios that are talking on built-in map.
Download Spec Sheet: PTT-624G Specification Sheet
Display
Size & Type
|
4-Inch HD IPS Screen |
| Resolution |
1136 x 460 |
| Touch Panel |
5 Point Capacitive Touch, Supports Wet Fingers/Gloves |
Physical Specifications
| Dimensions |
5.7" x 2.6" x 0.95" |
| Weight |
9.9 ounces |
| Ingress Protection |
IP68 Rated (Waterproof and Drop Tested)
|
| Operating Temp |
-13° F to 140° F
|
| Battery Type |
Li-Polymer |
| Battery Capacity |
5000 mAh |
Hardware Specifications
OS
|
Android 10
|
| Processor |
Quad-core ARM Cortex-A53 processor |
| RAM |
2 GB |
| ROM |
16 GB |
| SD Card Slot |
Max 128 GB |
| Microphone |
Dual-Mic with Noise Cancellation |
| Speaker |
Extra Loud 2-watt Built-In Speaker |
| Charge Port |
Type-C USB 2.0 |
Connectivity Specifications
| WCDMA |
B2/B4/B5
|
TDD-LTE
|
B41
|
| FDD-LTE |
B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B66/B71
|
| WI-FI |
IEEE 802.11a/b/g/n/ac 2.4+5GHz
|
| Bluetooth |
BT 4.2 with BLE |
Location
|
GPS/GLONASS/AGPS/BEIDOU
|
PTT-624G Quickstart Guide: PTT-624G Guide
Platform Operation
K2 Platform: $24.95 per device per month, includes unlimited nationwide PTT service, as well as GPS tracking every 60 seconds when the device is turned on. PC Dispatch software available at $12 per month per seat.
